http://www.designtoolinc.com Each DTI 5000 screwfeeder is designed specifically to the customer's fastener and application. The DTI 5000 can be designed with pistol grip or straight type air screwdrivers with various rpm's and torque, with reverse capabilities. DTI can also build on any brand of screwdriver.

http://www.designtoolinc.com/

http://www.designtoolinc.com

http://www.designtoolinc.com

http://www.designtoolinc.com

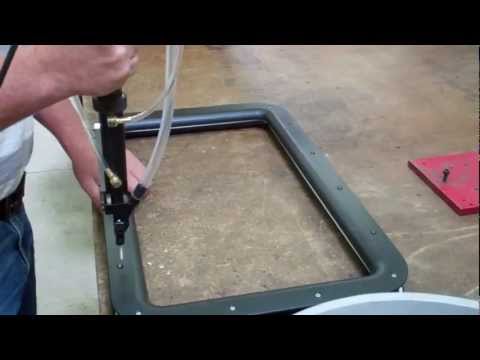

Automatic Inline Rigid Screwdriver System that feeds and drives screws into an RV window application. Our screw feeder system has only one moving part in the patented feed mechanism which allows us to be the fastest machine on the market. Please call us to increase your productivity 50% at 800-627-3674.

www.designtoolinc.com DTI5000 Automatic Screwfeeder with counterbore that allows two different counterbores to be assembled with one system.

http://www.designtoolinc.com

http://www.designtoolinc.com/

http://www.designtoolinc.com/

Automatic screw feeding and screwdriver three spindle hinge machine. Door hinges are assembled driving three screws at one time. http://www.designtoolinc.com

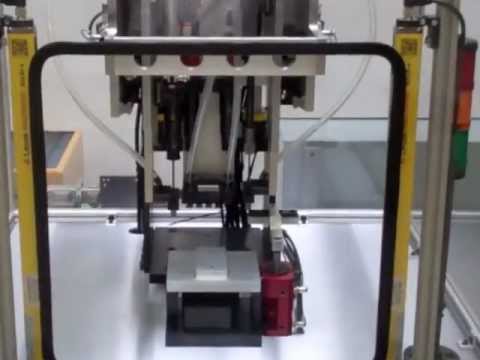

Automatic Screw feeding and screw driving four spindle turnkey system that drives four screws then shifts and drives three more screws.

http://www.designtoolinc.com XY Robot automatic screw feeding and driving systems from Design Tool.

http://www.designtoolinc.com Six-axis robot assembly machine by Design Tool, Inc.

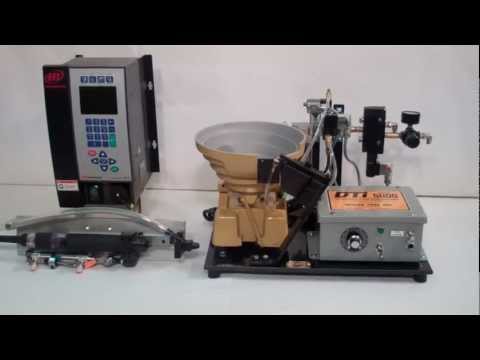

Ingersoll Rand DC Electric Screwdriver with screw feeder from Design Tool, Inc., http://www.designtoolinc.com

See how easy it is to feed screws with our patient feeder systems. Most of our competitors have complicated over engineered machines that they over charge for. Design Tool's machines are rugged yet simple to use and are built to last. Visit our website www.designtoolinc.com or call us today at 800-627-3674 for all your automatic fastener needs!

Screw feeding of slotted set screws in a bowl. Screws will climb in the feeder bowl horizontally(end to end) then turned vertically into the railing for seperating while moving over to our Patented feed mechanism.

Automatic Nut Driver System. This machine increased production by 50%. The part is placed in the nest and the nut is driven down to torque.

www.designtoolinc.com Design Tool Inc., DTI, Presents the DTI 1000-N Automatic Nut Dispenser and Counting System. This automatic nut feeder controls the exact number of fasteners available to the operator. We are the world's foremost manufacturer of automatic fastener feeding and driving systems. Call us today at 800.627.3674 and find out how we can make your assembly process fly!

The automatic dispenser system can count screws, bolts, pins, nuts, and other speciality fasteners. This system above is designed to drop a predetermined number of screws into a dispensing cup to be dropped into your hand or a remote location. The operator simply pushes a lever with the heel of their hand and the screws fall into their palm. That same action resets the machine for counting and feeding the next batch of screws. This gives the operator the correct number of screws to put into their part and accountability if the screw is missing or is dropped accidentally into their part. The system has a retry feature, in the event a screw is not sent to the dispenser. The screw dispensing cycle time is approximately one (1) second per screw. This system above counts out seven (7) screws. We also can do mulitiple counts out of one bowl with a selector switch or programmed PLC signal! System Components: 1-10 inch feeder bowl with a B12 drive unit 1-Single exit feed mechanism 1-Air filter, regulator, valving and plumbing assembly 1-PLC controller 1-Ring Sensor 1-Despensing mechanism 1-Mounting plate for above components 1-Feed status light 1-Owner's manual with assembly drawings and parts list System Options: -multiple counting with a selector switch or programmed PLC signal -1/4 cubic foot bulk screw supply hopper with controls -Low hopper sensor and indicator light -Clear Lexan enclosure for dispensing system -Spare Parts Kit

www.designtoolinc.com Design Tool Inc., DTI, Presents the DTI 4000 Screw and Nut Presenter. The pickup nest is designed to complement the method of obtaining the fastener. http://www.designtoolinc.com

This Automatic Finish nailer feeds and drives a #16 x 5/8" escutcheon pin. Design Tool, Inc. designs pin nailers for all sizes. Please call us at 800-627-3674 or visit us at www.designtoolinc.com and we can quote your system today!

DTI's DC electric, torque & angle control and monitoring driver tool mounted automatic screw feeding and driving system reaches deep into counterbore recesses.

www.designtoolinc.com Design Tool Inc., DTI, Presents the DTI 7000 Decorative Brass Nail Gun for the furniture upholstery industry. This decorative brass nail gun shoots nails as fast as this operator can position the gun for the next drive! We are the world's foremost manufacturer of furniture decorative nail guns. Call us today at 800.627.3674 and find out how we can make your decoration process fly!

T-Handle automatic screwfeeding and driving system from Design Tool makes assembling trailer floor boards simple. This autofeed screw gun delivers screws to a T-handle driver, allowing operators to work in an upright, standing position. http://www.designtoolinc.com
